Coating equipment for pipe inner wall PECVD
Feature:
1. The inner wall coating of pipes with a length of at least 12m can be made
2. The inner diameter of the pipe can be selected from 50mm~300mm
Coating options:
DLC coating, Si-based DLC coating, Si-C-N coating
Coating properties:
Super lubricating coating, super hard coating, impact resistant coating, wear resistant coating
Coating realization principle:HC-CVD
Product placement:Horizontal type
Peripheral services:
Can provide customers with customized equipment for pipeline pretreatment, including customized customized machine for sandblasting and customized customized machine for cleaning
Coating equipment (Figure 1)
Coating equipment (Figure 2)
Coating equipment (Figure 3)
Coating equipment (Figure 4)
Coating equipment (Figure 5)
Coating equipment application cases:
Application case of coating equipment (Figure 1)
Application case of coating equipment (Figure 2)
Coating equipment use data distribution diagram:

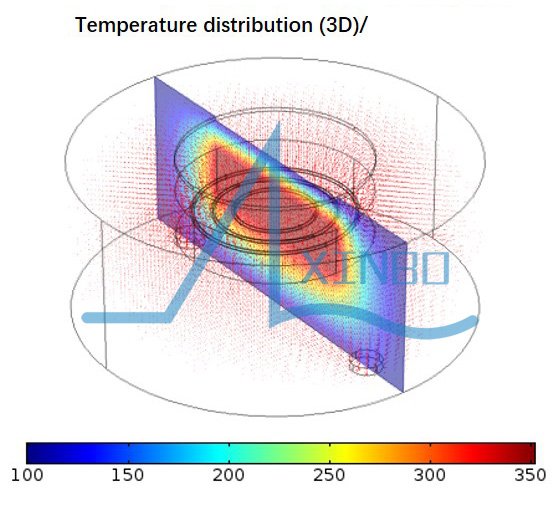

Workpiece temperature distribution 3D

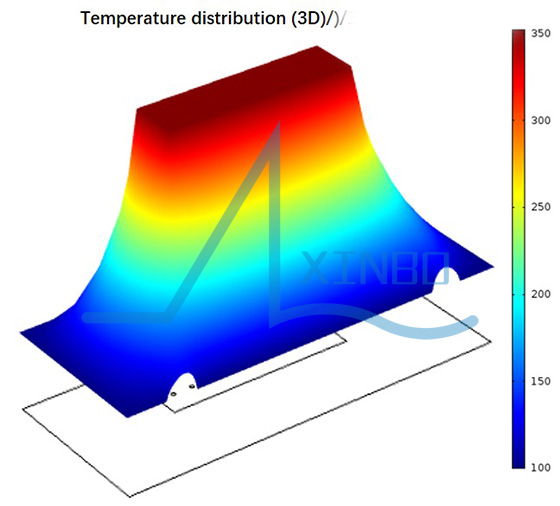

Temperature of 3 d

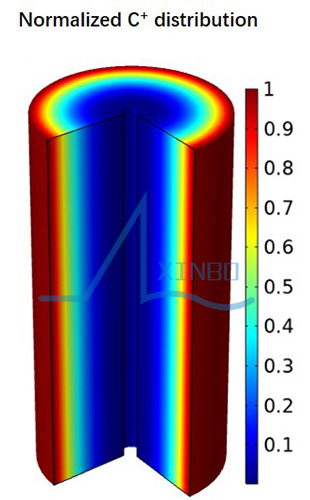

C ion distribution

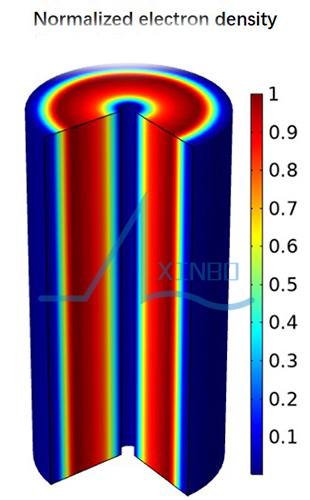

Distribution of plasma

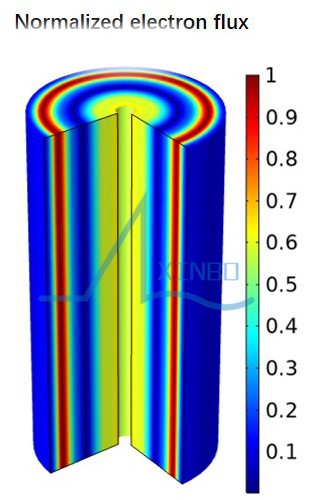

Electron flow distribution

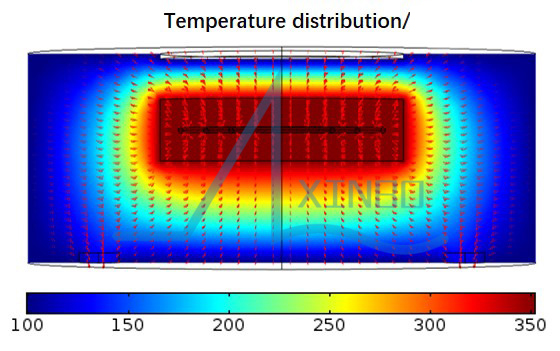

The temperature of 2 d

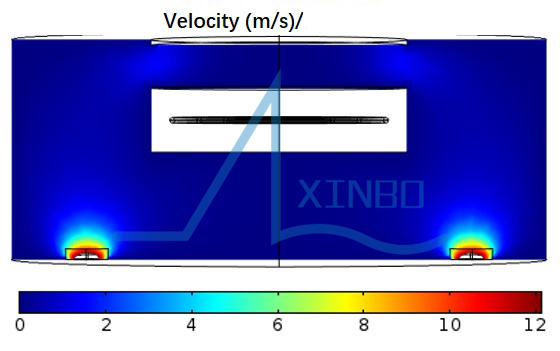

The flow field in 2 d
Application example of coating finished product of 20M pipeline:
